DashedLine#

Qualified name: manim.mobject.geometry.line.DashedLine

class DashedLine(*args, dash_length=0.05, dashed_ratio=0.5, **kwargs)[source]#

Bases: Line

A dashed Line.

Parameters

args (Any) – Arguments to be passed to Line
dash_length (float) – The length of each individual dash of the line.
dashed_ratio (float) – The ratio of dash space to empty space. Range of 0-1.
kwargs – Additional arguments to be passed to Line

See also

DashedVMobject

Examples

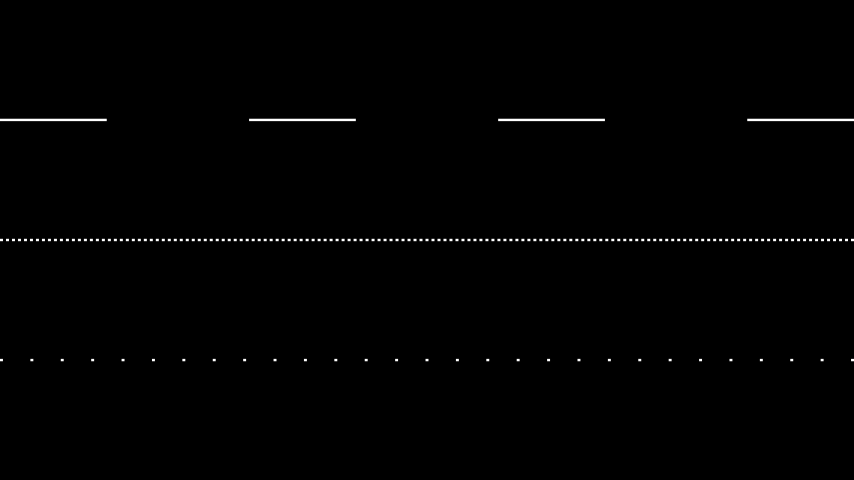

Example: DashedLineExample ¶

from manim import *

class DashedLineExample(Scene):
    def construct(self):
        # dash_length increased
        dashed_1 = DashedLine(config.left_side, config.right_side, dash_length=2.0).shift(UP*2)
        # normal
        dashed_2 = DashedLine(config.left_side, config.right_side)
        # dashed_ratio decreased
        dashed_3 = DashedLine(config.left_side, config.right_side, dashed_ratio=0.1).shift(DOWN*2)
        self.add(dashed_1, dashed_2, dashed_3)

Methods

`get_end`	Returns the end point of the line.
`get_first_handle`	Returns the point of the first handle.
`get_last_handle`	Returns the point of the last handle.
`get_start`	Returns the start point of the line.

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.

get_end()[source]#

Returns the end point of the line.

Examples

>>> DashedLine().get_end()
array([1., 0., 0.])

Return type: ndarray

get_first_handle()[source]#

Returns the point of the first handle.

Examples

>>> DashedLine().get_first_handle()
array([-0.98333333,  0.        ,  0.        ])

Return type: ndarray

get_last_handle()[source]#

Returns the point of the last handle.

Examples

>>> DashedLine().get_last_handle()
array([0.98333333, 0.        , 0.        ])

Return type: ndarray

get_start()[source]#

Returns the start point of the line.

Examples

>>> DashedLine().get_start()
array([-1.,  0.,  0.])

Return type: ndarray
