Union

Qualified name: manim.mobject.geometry.boolean\_ops.Union

class Union(*vmobjects, **kwargs)

Bases: _BooleanOps

Union of two or more VMobject s. This returns the common region of the VMobject s.

Parameters

vmobjects (VMobject) – The VMobject s to find the union of.

Raises

ValueError – If less than 2 VMobject s are passed.

Example

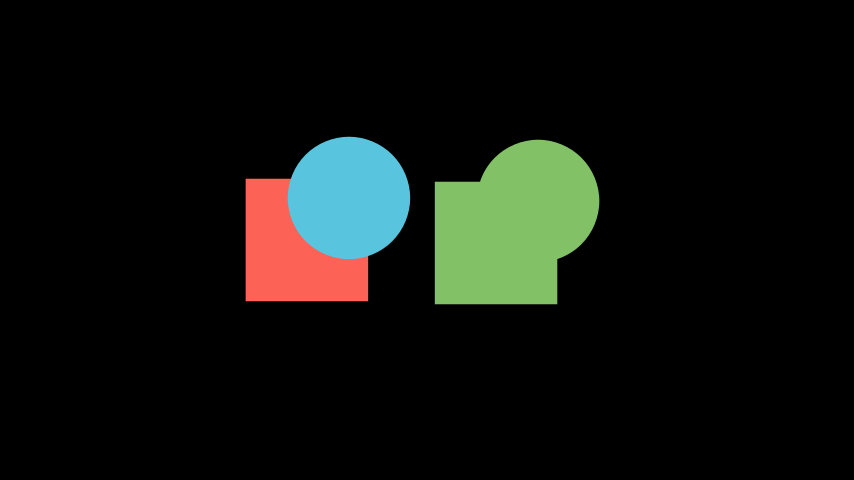

Example: UnionExample

from manim import *

class UnionExample(Scene):
    def construct(self):
        sq = Square(color=RED, fill_opacity=1)
        sq.move_to([-2, 0, 0])
        cr = Circle(color=BLUE, fill_opacity=1)
        cr.move_to([-1.3, 0.7, 0])
        un = Union(sq, cr, color=GREEN, fill_opacity=1)
        un.move_to([1.5, 0.3, 0])
        self.add(sq, cr, un)

Methods

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.
